FEDJET Unveils Advanced Waterjet Cutting Solution to Revolutionize Heavy-Duty Bronze and Copper Alloy Fabrication
Jiangsu, CHINA — FEDJET Waterjet, a leader in ultra-high-pressure waterjet technology, today announced its specialized abrasive waterjet cutting machines optimized for processing bronze, brass, and heavy non-ferrous alloys. Engineered to tackle the unique thermal and reflective challenges inherent to copper-based metals, FEDJET’s advanced waterjet systems provide fabricators with unmatched cut quality, high dimensional accuracy, and significant raw material savings.
Bronze alloys—renowned for their strength, corrosion resistance, and high electrical and thermal conductivity—are widely utilized in marine engineering, aerospace components, heavy machinery bearings, artistic architectural features, and valve body manufacturing. However, traditional thermal cutting tools such as laser and plasma cutters struggle with bronze due to its high reflectivity, high thermal conductivity, and potential for structural warping caused by intense heat exposure.
 |
Repeatability | ±0.03(mm) |
| Linear Accuarcy | ±0.038mm | |
| Max Rapid Traverse | 30000mm/min | |
| X-Axis Travel | 2.5m/3.0m/4.0m/5.0m | |
| Y-Axis Travel | 1.5m-20m | |
| Z-Axis Travel | 150mm-500mm |

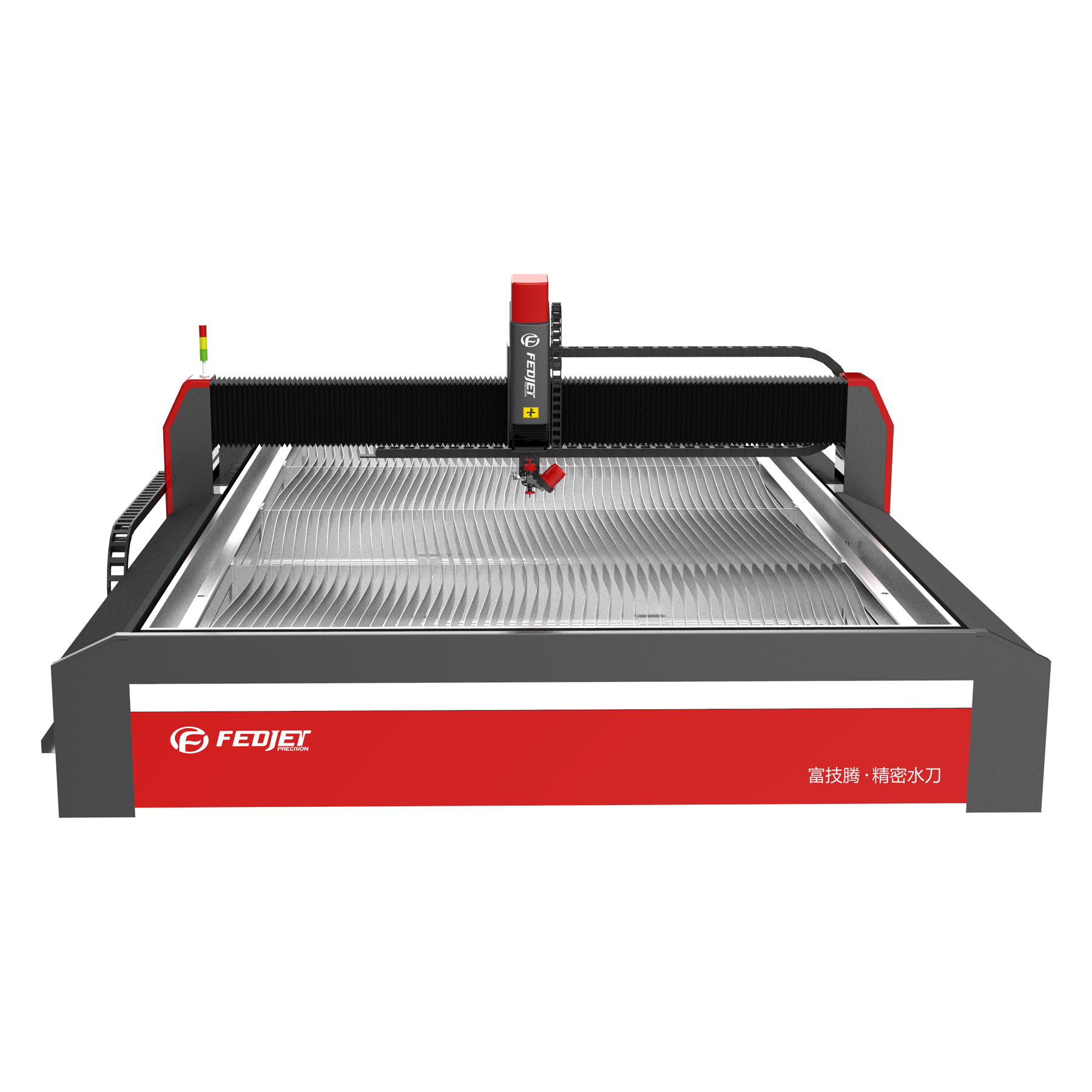

This waterjet cutting bronze system combines rigid construction, precision engineering, and intelligent control for superior cutting accuracy and efficiency. Designed for industrial applications, it features a large-span gantry, fully enclosed protection, and optional 5-axis cutting for complex geometries. With ±0.02mm repeatability and speeds up to 20,000mm/min, it delivers fast, reliable results in metal, stone, composites, and more.
FEDJET's abrasive waterjet technology circumvents these limitations entirely through its cold-cutting mechanism:
Zero Heat-Affected Zone (HAZ): Waterjet cutting generates no thermal energy at the cutting line, eliminating material deformation, heat discoloration, edge hardening, or micro-cracking in sensitive bronze grades (such as aluminum bronze, phosphor bronze, or silicon bronze).
Immunity to Optical Reflectivity: Unlike fiber laser cutting machines that suffer optics damage or severe energy drop-off when exposed to highly reflective copper alloys, FEDJET waterjets use mechanical micro-abrasives propelled by ultra-high-pressure water (up to 420MPa/60,000 PSI) to cut cleanly regardless of material optical properties.
Exceptional Thick-Plate Capabilities: Capable of slicing through thick bronze blocks up to 150mm (6 inches) or more while maintaining tight tolerances and smooth edge finishes (Ra 3.2 – Ra 1.6), reducing or eliminating the need for secondary CNC machining.
Intelligent Taper-Free 5-Axis Precision: Equipped with optional 5-axis cutting head technology, the machine automatically calculates and compensates for water stream taper, delivering perfect 90° straight bevels or complex bevel cuts for pre-welding preparation.
Material Savings & Eco-Friendly Process: Featuring a narrow kerf width and multi-head setup potential, operators can nest parts closely to minimize costly bronze material scrap. The process produces zero hazardous airborne fumes, toxic smoke, or slag.
"Bronze is an indispensable material in high-performance engineering, but its thermal properties make traditional thermal cutting both risky and costly," said the Product Director at FEDJET. "Our high-pressure abrasive waterjet machines eliminate heat distortion and tool wear entirely, empowering metal fabricators to achieve pristine edges, complex shapes, and exceptional speed in a single pass."
FEDJET waterjet cutting machines are built with heavy-duty structural gantries, precision linear drives, and state-of-the-art high-pressure intensifier pumps, ensuring durable, long-term operational accuracy under demanding production schedules.
